North Star M40 Elite SS Ice Flaker

North Star M40 Elite SS Ice Flaker

Contact us for price

orCall 16302629595

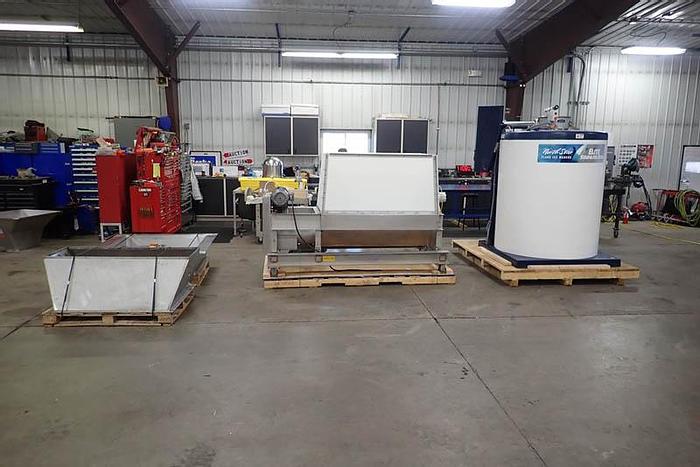

North Star SS Elite ice flaker. Model 40 Elite SS flooded operation/ASME flake ice maker. Capacity up to 19.3 tons per 24 hours. Includes case ice dispenser, SS bottom, poly bin top. Hopper capacity 56 in. long x 20 in. wide x 47 in. deep. Poly top bin is 30 in. tall. (2) SS feed augers into (1) SS bottom feed auger. Bottom discharge to a 10 in. x 10 in. square discharge, with 10 in. clearance. Dispenser is mounted v-groove casters to slide in and out under the chute. SS chute that was mounted on a mezzanine for the ice machine to mount on, 43 in. x 43 in. x 12 in. deep. SS chute that mounts to the mezzanine chute and feeds the ice dispenser, 56 in. long x 20 in. wide x 20 in. deep. (2) SS control panels. Hand/auto feature for dispenser.Capacity 19.3T (17.6 MT) **Capacity in US tons (T) and metric tons (MT) of ice per 24 hours based on -25ºF (-32ºC) evaporator temperature, ammonia refrigerant, 1.5mm ice thickness, and 60° F (16° C) water supply temperatures** Overall dimensions and weights of skids: Ice flaker 72 in. long x 93 in. wide x 96 in. tall, 4532 lbs. Ice dispenser 98 in. long x 48 in. wide x 68 in. tall, 1513 lbs. Hopper with control panels 55 in. long x 52 in. wide x 19 in. deep, 263 lbs. Hopper 57 in. long x 42 in. wide x 26 in. tall, 180 lbs.
